STK0765BF Advanced Power MOSFET

STK0765BF Description

Semiconductor SWITCHING REGULATOR APPLICATIONS STK0765BF Advanced Power MOSFET .

STK0765BF Features

* High Voltage: BVDSS=650V(Min. )
* Low Crss : Crss=13pF(Typ. )
* Low gate charge : Qg=32nC(Typ. )
* Low RDS(on) :RDS(on)=1.2Ω(Typ. ) Ordering Information Type No. Marking STK0765BF STK0765 Package Code TO-220F-3L PIN Connection G GDS TO-220F-3L D S Absolute m

📥 Download Datasheet

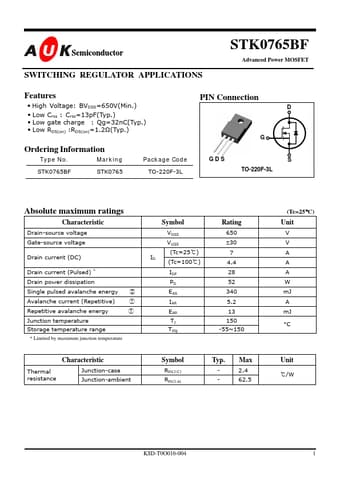

Preview of STK0765BF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK0765BF
Manufacturer
AUK
File Size
420.87 KB
Datasheet
STK0765BF_AUK.pdf
Description
Advanced Power MOSFET
