STJ828SF - P-Channel Enhancement-Mode MOSFET

Name: STJ828SF
SKU: STJ828SF-625809

AUK

The STJ828SF by AUK is a P-Channel Enhancement-Mode MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STJ828SF
Manufacturer	AUK
File Size	333.43 KB
Description	P-Channel Enhancement-Mode MOSFET
Datasheet	STJ828SF_AUK.pdf

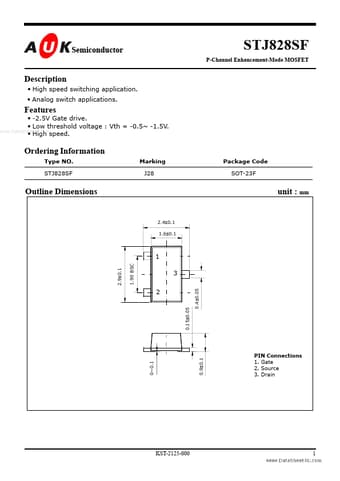

Additional preview pages of the STJ828SF datasheet.

High speed switching application. Analog switch applications.

-2.5V Gate drive.
Low threshold voltage : Vth = -0.5~ -1.5V. www. DataSheet4U. com.
High speed. Ordering Information Type NO. STJ828SF Marking J28 Package Code SOT-23F Outline Dimensions unit : mm 2.4±0.1 1.6±0.1 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 PIN Connections 1. Gate 2. Source 3. Drain KST-2125-000 0.9±0.1 0~0.1 1 STJ828SF Absolute maximum ratings Characteristic Drain-Source voltage Gate-Source voltage DC Drain current Drain Power dissipation Ch.
