STJ828M - P-Channel Enhancement-Mode MOSFET

Name: STJ828M
SKU: STJ828M-625808

AUK

The STJ828M by AUK is a P-Channel Enhancement-Mode MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STJ828M
Manufacturer	AUK
File Size	309.63 KB
Description	P-Channel Enhancement-Mode MOSFET
Datasheet	STJ828M_AUK.pdf

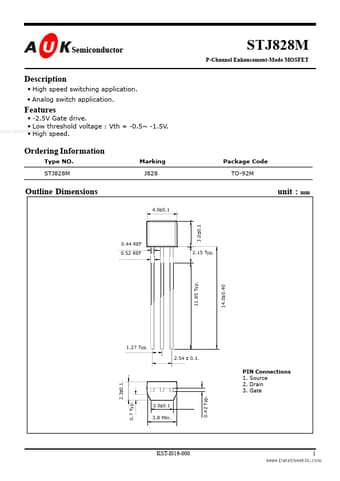

Additional preview pages of the STJ828M datasheet.

High speed switching application. Analog switch application.

-2.5V Gate drive.
Low threshold voltage : Vth = -0.5~ -1.5V. www. DataSheet4U. com.
High speed. Ordering Information Type NO. STJ828M Marking J828 Package Code TO-92M Outline Dimensions 4.0±0.1 unit : mm 0.44 REF 0.52 REF 2.15 Typ. 11.85 Typ. 3.0±0.1 1.27 Typ. 2.54 ± 0.1. 14.0±0.40 2.3±0.1. PIN Connections 1. Source 2. Drain 3. Gate 0.7 Typ. 3.0±0.1 3.8 Min. 0.42 Typ. KST-I016-000 1 STJ828M Absolute maximum ratings Characteristic Drain-Source voltage Gat.
