S78L24F, S78L05F - Positive-Voltage Regulators

Datasheet Details

Part number	S78L24F, S78L05F
Manufacturer	AUK
File Size	281.05 KB
Description	Positive-Voltage Regulators

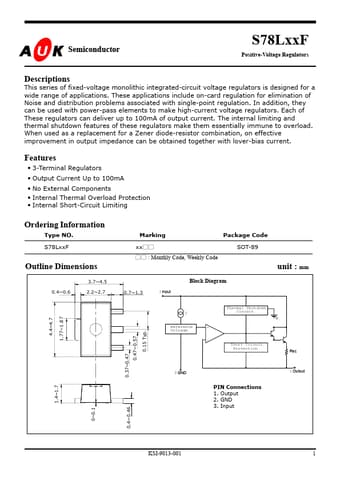

Datasheet	S78L05F-AUK.pdf
Note	This datasheet PDF includes multiple part numbers: S78L24F, S78L05F. Please refer to the document for exact specifications by model.

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current. Features.
3-Terminal Regulators.
Output Current Up to 100mA.
No External Components.
Internal Thermal Overload Protection.
Internal Short-Circuit Limiting Ordering Information Type NO. S78LxxF Outline Dimensions 0.4.
