S78L05F - Positive-Voltage Regulators

AUK

📥 Download Datasheet

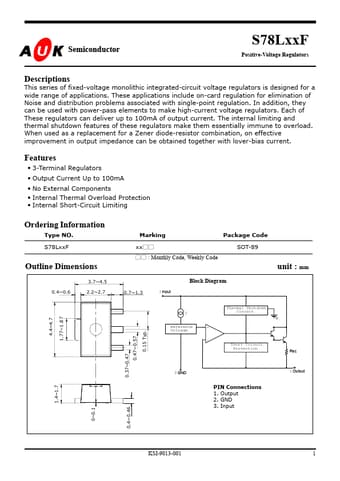

S78L05F Datasheet Preview — Preview of S78L05F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: S78L05F
Manufacturer: AUK
File Size: 281.05 KB
Datasheet: S78L05F-AUK.pdf
Description: Positive-Voltage Regulators

S78L05F Product details

Description

This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications.

Features

of these regulators make them essentially immune to overload. When used as a replacement for a Zener diode-resistor combination, on effective improvement in output impedance can be obtained together with lover-bias current. Features.
3-Terminal Regulators.
Output Current Up to 100mA.
No External Components.
Internal Thermal Overload Protection.
Internal Short-Circuit Limiting Ordering Information Type NO. S78LxxF Outline Dimensions 0.4.
