SBT2907F - PNP Silicon Transistor (General purpose application Switching application)

Name: SBT2907F
SKU: SBT2907F-273340

AUK corp

The SBT2907F by AUK corp is a PNP Silicon Transistor (General purpose application Switching application). Below is the official datasheet preview.

📥 Download Datasheet

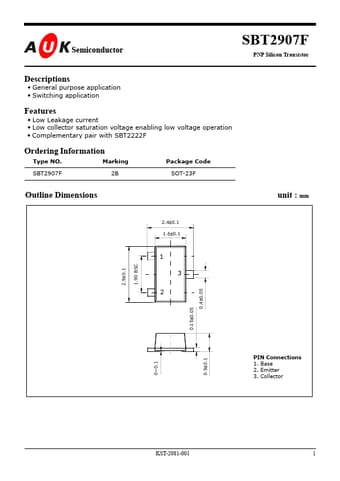

SBT2907F PNP Silicon Transistor (General purpose application Switching application) by AUK corp - Datasheet Preview — Official preview page of the **SBT2907F** PNP Silicon Transistor (General purpose application Switching application) datasheet (AUK corp).

Datasheet Details

Part number	SBT2907F
Manufacturer	AUK corp
File Size	191.03 KB
Description	PNP Silicon Transistor (General purpose application Switching application)
Datasheet	SBT2907F_AUKcorp.pdf
Additional preview pages of the SBT2907F datasheet.

SBT2907F Product details

Description

General purpose application Switching application

Features

Low Leakage current.
Low collector saturation voltage enabling low voltage operation.
Complementary pair with SBT2222F Ordering Information Type NO. SBT2907F Marking 2B Package Code SOT-23F Outline Dimensions 2.4±0.1 1.6±0.1 unit : mm 1 2.9±0.1 1.90 BSC 3 0.4±0.05 2 0.15±0.05 PIN Connections 1. Base 2. Emitter 3. Collector KST-2081-001 0.9±0.1 0~0.1 1 SBT2907F Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltage Emitter-.
