SBT2907AU - PNP Silicon Transistor

Name: SBT2907AU
SKU: SBT2907AU-273338

AUK corp

The SBT2907AU by AUK corp is a PNP Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	SBT2907AU
Manufacturer	AUK corp
File Size	191.33 KB
Description	PNP Silicon Transistor
Datasheet	SBT2907AU_AUKcorp.pdf

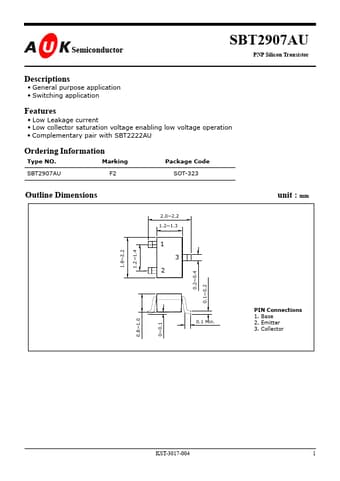

Additional preview pages of the SBT2907AU datasheet.

General purpose application Switching application

Low Leakage current.
Low collector saturation voltage enabling low voltage operation.
Complementary pair with SBT2222AU Ordering Information Type NO. SBT2907AU Marking F2 Package Code SOT-323 Outline Dimensions 2.0~2.2 1.2~1.3 unit : mm 1 1.8~2.2 1.2~1.4 3 0.2~0.4 2 0.1~0.2 0.8~1.0 KST-3017-004 0~0.1 0.1 Min. PIN Connections 1. Base 2. Emitter 3. Collector 1 SBT2907AU Absolute maximum ratings Characteristic Collector-Base voltage Collector-Emitter voltag.
