S7915PIC - Fixed-Negative-Voltage Regulator

Name: S7915PIC
SKU: S7915PIC-482930

AUK corp

📥 Download Datasheet

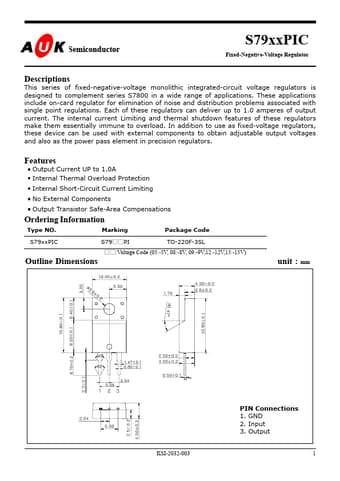

S7915PIC Datasheet Preview — Preview of S7915PIC PDF

Datasheet Details

Part number	S7915PIC
Manufacturer	AUK corp
File Size	271.47 KB
Description	Fixed-Negative-Voltage Regulator
Datasheet	S7915PIC_AUKcorp.pdf

S7915PIC Product details

Description

This series of fixed-negative-voltage monolithic integrated-circuit voltage regulators is designed to complement series S7800 in a wide range of applications.

Features

of these regulators make them essentially immune to overload. In addition to use as fixed-voltage regulators, these device can be used with external components to obtain adjustable output voltages and also as the power pass element in precision regulators. Features.
Output Current UP to 1.0A.
Internal Thermal Overload Protection.
Internal Short-Circuit Current Limiting.
No External Components.
Output Transistor Safe-Area Compensations Ordering Infor.
