S79L12 Negative Voltage Regulator

S79L12 Description

S79L12 Elektronische Bauelemente 3-Terminal Negative Voltage Regulator www.DataSheet4U.net .
D TO-92 E S1 The SM79L12 is monolithic fixed voltage regulator integrated circuit.

S79L12 Features

* Short Circuit Current Limiting
* Output Current Up To 100mA
* Thermal Overload Shutdown Protection SEATING PLANE b1 L e1 e b C REF. A S1 b b1 C Millimeter Min. Max. 4.45 4.7 1.02 0.36 0.51 0.36 0.76 0.36 0.51 REF. D E L e1 e Millimeter Min. Max. 4.44 4.7 3.30 3.81 12.70 1.150

📥 Download Datasheet

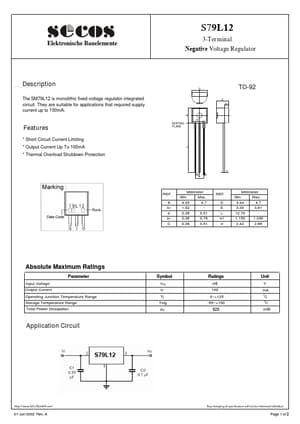

Preview of S79L12 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S79L12
Manufacturer
SeCoS
File Size
334.95 KB
Datasheet
S79L12_SeCoS.pdf
Description
Negative Voltage Regulator
