S72N45UF - Standard Voltage Detector

Name: S72N45UF
SKU: S72N45UF-482860

AUK corp

📥 Download Datasheet

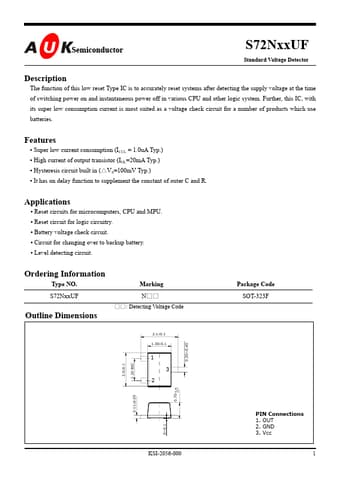

S72N45UF Datasheet Preview — Preview of S72N45UF PDF

Datasheet Details

Part number	S72N45UF
Manufacturer	AUK corp
File Size	342.17 KB
Description	Standard Voltage Detector
Datasheet	S72N45UF_AUKcorp.pdf

S72N45UF Product details

Description

The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching power on and instantaneous power off in various CPU and other logic system.

Features

Super low current consumption (ICCL = 1.0uA Typ. ).
High current of output transistor (IOL=20mA Typ. ).
Hysteresis circuit built in (△VS=100mV Typ. ).
It has on delay function to supplement the constant of outer C and R.
