S72N42SF - Standard Voltage Detector

Name: S72N42SF
SKU: S72N42SF-482856

AUK corp

📥 Download Datasheet

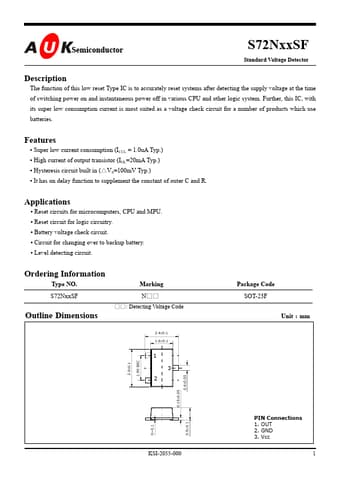

S72N42SF Datasheet Preview — Preview of S72N42SF PDF

Datasheet Details

Part number	S72N42SF
Manufacturer	AUK corp
File Size	342.20 KB
Description	Standard Voltage Detector
Datasheet	S72N42SF_AUKcorp.pdf

S72N42SF Product details

Description

The function of this low reset Type IC is to accurately reset systems after detecting the supply voltage at the time of switching power on and instantaneous power off in various CPU and other logic system.

Features

Super low current consumption (ICCL = 1.0uA Typ. ).
High current of output transistor (IOL=20mA Typ. ).
Hysteresis circuit built in (△VS=100mV Typ. ).
It has on delay function to supplement the constant of outer C and R.
