AT87C5103, AT83C5103 Datasheet - ATMEL

AT87C5103 Low-pin Count 8-bit Microcontroller

The AT8xC5103 is a high-performance ROM/OTP version of the 80C51 8-bit Microcontroller in 16 and 24-pin packages. The AT8xC5103 contains a standard C51 CPU core with 12 Kbytes ROM/OTP program memory, 256 bytes of internal RAM, 256 bytes of extended internal RAM, a 5sources 4-level interrupt system, .

AT87C5103 Features

* 80C51 Compatible CPU Core High-speed Architecture

* X2 Speed Improvement Capability (6 Clocks/Machine Cycle)

* 16 MHz in Standard or X2 mode

* 256 Bytes RAM

* 256 Bytes XRAM

* 12K Bytes ROM/OTP Program Memory

* Two 16-bit Timer/Counters T0, T

AT83C5103_ATMELCorporation.pdf

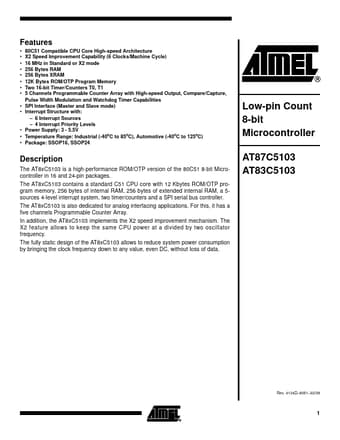

AT87C5103 Datasheet Preview — This datasheet PDF includes multiple part numbers: AT87C5103, AT83C5103. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AT87C5103, AT83C5103

Manufacturer:

ATMEL

File Size:

548.97 KB

Description:

Low-pin count 8-bit microcontroller.

Note:

This datasheet PDF includes multiple part numbers: AT87C5103, AT83C5103.
Please refer to the document for exact specifications by model.
