AT80C51RD2 - 80C51 High Performance ROM 8-bit Microcontroller

AT80C51RD2 Description

.
AT80C51RD2 microcontrollers are high performance versions of the 80C51 8-bit microcontrollers.

AT80C51RD2 Features

* 80C52 Compatible
* Four 8-bit I/O Ports
* Three 16-bit Timer/Counters
* 256 Bytes Scratch Pad RAM
* 8 Interrupt Sources with 4 Priority Levels
* Dual Data Pointer
* Variable Length MOVX for Slow RAM/Peripherals
* High-speed Architectu

📥 Download Datasheet

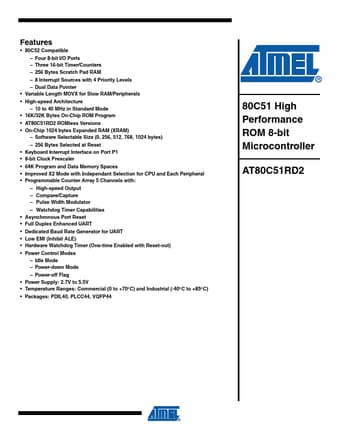

Preview of AT80C51RD2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT80C51RD2
Manufacturer
ATMEL
File Size
698.78 KB
Datasheet
AT80C51RD2-ATMEL.pdf
Description
80C51 High Performance ROM 8-bit Microcontroller
