AT86RF231-ZF, AT86RF231-ZU Datasheet - ATMEL

AT86RF231-ZF Low Power 2.4GHz Transceiver

Table 1-1. Pin Description AT86RF231 Pins Name Type 1 DIG3 Digital output (Ground) 2 DIG4 Digital output (Ground) 3 AVSS Ground 4 RFP RF I/O 5 RFN RF I/O 6 AVSS Ground 7 DVSS Ground 8 /RST Digital input 9 DIG1 Digital output (Ground) 10 DIG2 Digital output (Ground) 11 SLP_TR Di.

AT86RF231-ZF Features

* High Performance RF-CMOS 2.4 GHz Radio Transceiver Targeted for IEEE 802.15.4™, ZigBee®, 6LoWPAN, RF4CE, SP100, WirelessHART™ and ISM Applications

* Industry Leading Link Budget (104 dB)

* Receiver Sensitivity -101 dBm

* Programmable Output Power from -17 dBm up

AT86RF231-ZU-ATMEL.pdf

This datasheet PDF includes multiple part numbers: AT86RF231-ZF, AT86RF231-ZU. Please refer to the document for exact specifications by model.

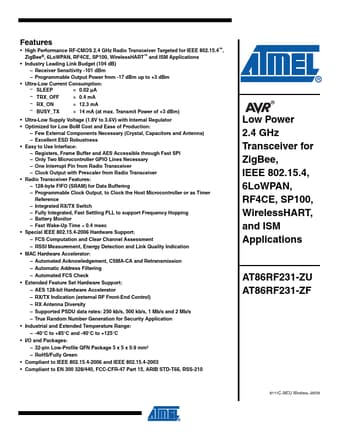

AT86RF231-ZF Datasheet Preview Page 2 AT86RF231-ZF Datasheet Preview Page 3

Datasheet Details

Part number:

AT86RF231-ZF, AT86RF231-ZU

Manufacturer:

ATMEL

File Size:

2.02 MB

Description:

Low power 2.4ghz transceiver.

Note:

This datasheet PDF includes multiple part numbers: AT86RF231-ZF, AT86RF231-ZU.
Please refer to the document for exact specifications by model.
