AT76CL610 - Dual ADC 6-bit 1 Gsps Converter

AT76CL610 Description

.

AT76CL610 Features

* Dual 6-bit Resolution
* 700 MHz Full-power Input Bandwidth (-3 dB)
* Band Flatness (±0.5 dB) from DC to 350 MHz
* 1 Gsps Sampling Rate
* SINAD = 35 dB Typ (5.7 ENOB)
* THD = -47 dB, SFDR = -48 dB at FS = 1 Gsps, FIN = 250 MHz, (SFSR = -0.5dB FS)

📥 Download Datasheet

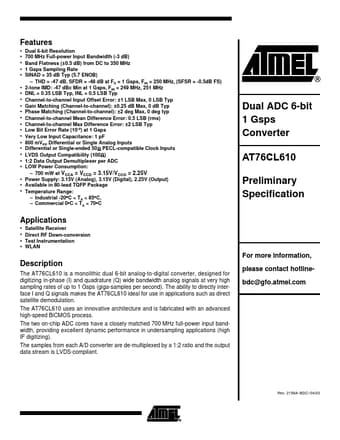

Preview of AT76CL610 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT76CL610
Manufacturer
ATMEL
File Size
170.61 KB
Datasheet
AT76CL610-ATMEL.pdf
Description
Dual ADC 6-bit 1 Gsps Converter
