AT76C120 - High- Performance Digital Imaging and Video Processor

AT76C120 Description

.
The AT76C120 is a highly integrated solution for still-image and video playback applications.

AT76C120 Features

* Supports Image (Up to 16 Mpixe

AT76C120 Applications

* ARM7TDMI® CPU Running at a Maximum Rate of 78 MHz 16/8-bit CCIR Digital Video Input Interface for Video/Still-Picture Capture Video Encoder for NTSC/PAL TV Signal Digital Video Outputs Include: Composite, 16/8-bit YC (CCIR-656), RGB 565, 24-bit RGB, Component (Y/Pr/Pb), VESA Up to XGA Resolutions In

📥 Download Datasheet

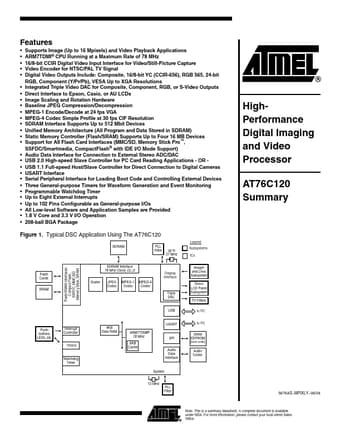

Preview of AT76C120 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT76C120
Manufacturer
ATMEL
File Size
76.15 KB
Datasheet
AT76C120_ATMEL.pdf
Description
High- Performance Digital Imaging and Video Processor
