AT90SC12036RU Secure Microcontroller

AT90SC12036RU Description

.
The AT90SC12036RU is a low-power, high-performance, 8-bit microcontroller with ROM and EEPROM memory, based on the AVR enhanced RISC architecture.

AT90SC12036RU Features

* General
* High-performance, Low-power AVR® Enhanced RISC Architecture
* 120 Powerful Instructions (Most Executed in a Single Clock Cycle) Low Power Idle and Power-down Modes Bond Pad Locations Conforming to ISO 7816-2 ESD Pr

AT90SC12036RU Applications

* The AT90SC12036RU can also be configured to offer compatibility with the AT90SC6436RT. Figure 1 shows a block diagram of the AT90SC12036RU Figure 1. AT90SC12036RU AVR Enhanced RISC Architecture OTP EEPROM User Memory Access Control Data Bus 8-bit Random Number Generator PC ROM Program Memory

📥 Download Datasheet

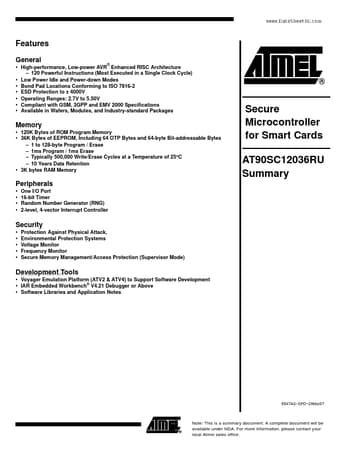

Preview of AT90SC12036RU PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT90SC12036RU
Manufacturer
ATMEL Corporation
File Size
97.06 KB
Datasheet
AT90SC12036RU_ATMELCorporation.pdf
Description
Secure Microcontroller
