AT90SC12836RCT - Secure Microcontroller

Description

AT90SC12836RCT is a low power, high performance, 8/16-bit microcontroller based on the secureAVR ™ enhanced RISC architecture, with ROM program memory and EEPROM data memory.

By executing powerful instructions in a single clock cycle, the AT90SC12836RCT achieves throughputs close to 1 MIPS per MHz.

Features

  • General.
  • High-performance, Low-power secureAVR™ Enhanced RISC Architecture.
  • 137 Powerful Instructions (Most Executed in a Single Clock Cycle) Low Power Idle and Power-down Modes Bond Pad Locations Conforming to ISO 7816-2 ESD Protection to ± 6000V Operating Ranges: 2.7 to 5.5V Compliant with GSM, 3GPP and EMV 2000 Specifications; PC Industry Compatible Available in Wafers, Modules, and Industry-standard Packages Memor.

📥 Download Datasheet

📁 Similar Datasheet

  • AT90S1200 - Microcontroller (ATMEL)
  • AT90S4414 - Microcontroller (ATMEL)
  • AT90S4434 - 8-bit Microcontroller (ATMEL)
  • AT90S8535 - 8-bit Microcontroller (ATMEL)
  • AT90-0001 - Digital Attenuator/ 31.0 dB/ 5-Bit/ TTL Driver/ DC-6.0 GHz (Tyco Electronics)
  • AT90-0106 - Digital Attenuator/ 50 dB/ 6-Bit/ TTL Driver/ DC-2.4 GHz (Tyco Electronics)
  • AT90-0107 - Digital Attenuator/ 31.5 dB/ 6-Bit/ TTL Driver/ DC-4.0 GHz (Tyco Electronics)
  • AT90-0233 - Digital Attenuator/ 30 dB/ 4-Bit/ TTL Driver/ DC - 2.5 GHz (Tyco Electronics)
  • AT90-0263 - Digital Attenuator/ 31 dB/ 5-Bit/ TTL Driver/ DC-4.0 GHz (Tyco Electronics)
  • AT90-0283 - Digital Attenuator/ 15.5 dB/ 5-Bit/ TTL Driver/ DC-3.5 GHz (Tyco Electronics)
Other Datasheets by ATMEL Corporation

Full PDF Text Transcription

Click to expand full text

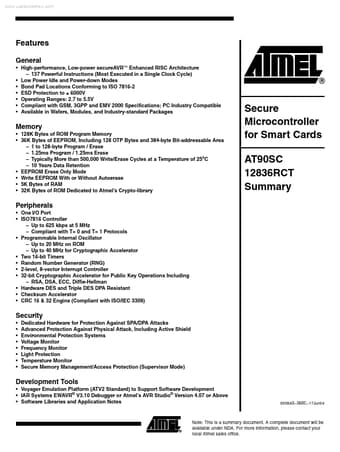

www.DataSheet4U.com Features General • High-performance, Low-power secureAVR™ Enhanced RISC Architecture • • • • • • – 137 Powerful Instructions (Most Executed in a Single Clock Cycle) Low Power Idle and Power-down Modes Bond Pad Locations Conforming to ISO 7816-2 ESD Protection to ± 6000V Operating Ranges: 2.7 to 5.5V Compliant with GSM, 3GPP and EMV 2000 Specifications; PC Industry Compatible Available in Wafers, Modules, and Industry-standard Packages Memory • 128K Bytes of ROM Program Memory • 36K Bytes of EEPROM, Including 128 OTP Bytes and 384-byte Bit-addressable Area – 1 to 128-byte Program / Erase – 1.25ms Program / 1.
