AT86RF215IQ, AT86RF215 - Sub-1GHz/2.4GHz Transceiver and I/Q Radio

ATMEL Corporation

📥 Download Datasheet

AT86RF215IQ Datasheet Preview — This datasheet PDF includes multiple part numbers: AT86RF215IQ, AT86RF215. Please refer to the document for exact specifications by model.

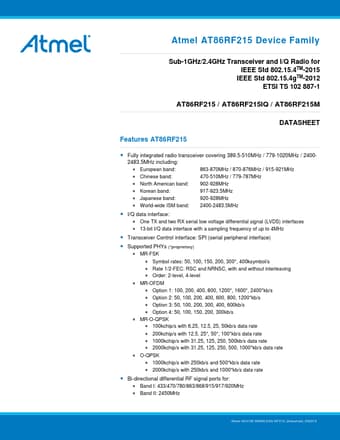

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT86RF215IQ, AT86RF215
Manufacturer	ATMEL ↗ Corporation
File Size	3.70 MB
Description	Sub-1GHz/2.4GHz Transceiver and I/Q Radio
Datasheet	AT86RF215-ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: AT86RF215IQ, AT86RF215. Please refer to the document for exact specifications by model.

AT86RF215IQ Product details

Features

AT86RF215.
Fully integrated radio transceiver covering 389.5-510MHz / 779-1020MHz / 2400- 2483.5MHz including:.
European band: 863-870MHz / 870-876MHz / 915-921MHz.
Chinese band: 470-510MHz / 779-787MHz.
North American band: 902-928MHz.
Korean band: 917-923.5MHz.
Japanese band: 920-928MHz.
World-wide ISM band: 2400-2483.5MHz.
I/Q data interface:.
One TX and two RX serial low voltage differential signal (LVDS) interfaces.
13-bit I/Q.
