AT7912E - Single SpaceWire link High Speed Controller

ATMEL Corporation

AT7912E Datasheet Preview — Preview of AT7912E PDF

Datasheet Details

Part number	AT7912E
Manufacturer	ATMEL ↗ Corporation
File Size	388.87 KB
Description	Single SpaceWire link High Speed Controller
Datasheet	AT7912E_ATMELCorporation.pdf

AT7912E Product details

Description

www.DataSheet4U.com The AT7912E provides an interface between a SpaceWire link according to the SpaceWire Standard ECSS-E-50-12A and several different interfaces.The AT7912E was designed by EADS Astrium in Germany under the name 'SMCS116SpW" for "Scalable Multi-channel Communication Subsystem for SpaceWire".It is manufactured using the SEU hardened cell library from Atmel MG2RT CMOS 0.5µm radiation tolerant sea of gates technology.For any technical question relative to the functionality of t

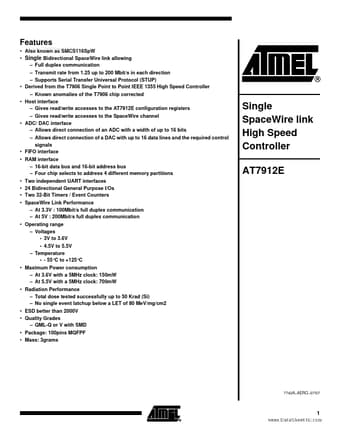

Features

www. DataSheet4U. com.
Also known as SMCS116SpW.
Single Bidirectional SpaceWire link allowing.
Full duplex communication.
Transmit rate from 1.25 up to 200 Mbit/s in each direction.
Supports Serial Transfer Universal Protocol (STUP) Derived from the T7906 Single Point to Point IEEE 1355.
