AT7910E - SpW-10X SpaceWire Router

ATMEL Corporation

AT7910E Datasheet Preview — Preview of AT7910E PDF

Datasheet Details

Part number	AT7910E
Manufacturer	ATMEL ↗ Corporation
File Size	338.98 KB
Description	SpW-10X SpaceWire Router
Datasheet	AT7910E_ATMELCorporation.pdf

AT7910E Product details

Description

www.DataSheet4U.com The SpW-10X SpaceWire routing switch is capable of connecting many nodes, providing a means of routing packets between the nodes connected to it.It comprises eight SpaceWire link interfaces and a routing matrix.The routing matrix enables packets arriving at one link interface to be transferred to and sent out of another link interface on the routing switch.The AT7910E was designed by Austrian Aerospace (Austria) and the University of Dundee (Scotland).It is manufactured

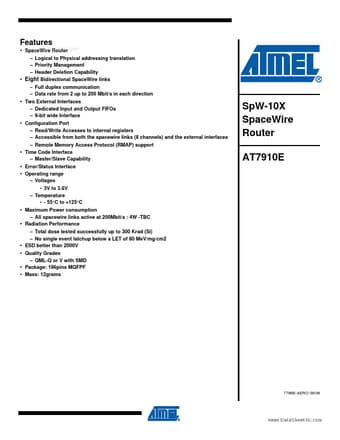

Features

www. DataSheet4U. com.
SpaceWire Router.
Logical to Physical addressing translation.
Priority Management.
Header Deletion Capability Eight Bidirectional SpaceWire links.
Full duplex communication.
Data rate from 2 up to 200 Mbit/s in each direction Two External Interfaces.
Dedicated Input and Output FIFOs.
