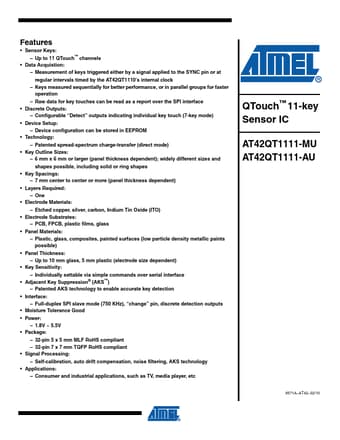

AT42QT1111-AU, AT42QT1111-MU QTouch 11-key Sensor

AT42QT1111-AU Description

.
Table 1-1.

AT42QT1111-AU Features

* Sensor Keys:
* Up to 11 QTouch™ channels
* Data Acquistion:
* Measurement of keys triggered either by a signal applied to the SYNC pin or at regular intervals timed by the AT42QT1110's internal clock
* Keys measured sequentially for better performance, or in

AT42QT1111-AU Applications

* Consumer and industrial applications, such as TV, media player, etc QTouch™ 11-key Sensor IC AT42QT1111-MU AT42QT1111-AU 9571A
* AT42
* 02/10 1. Pinout and Schematic 1.1 Pinout Configuration SNS8K/DETECT3 SNS9/DETECT4 SNS9K/DETECT5 CHANGE RESET SNS10/DETECT6 SNS10K/SYNC SN
