AT27LV512A - 512K 64K x 8 Low Voltage OTP CMOS EPROM

ATMEL Corporation

📥 Download Datasheet

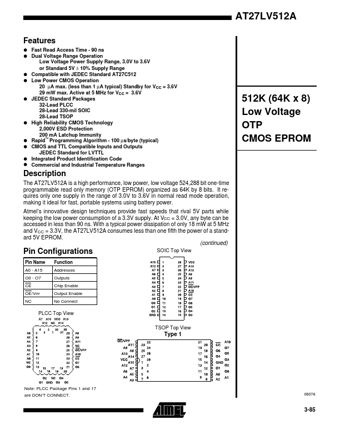

AT27LV512A Datasheet Preview — Preview of AT27LV512A PDF

Datasheet Details

Part number: AT27LV512A
Manufacturer: ATMEL Corporation
File Size: 220.84 KB
Datasheet: AT27LV512A_ATMELCorporation.pdf
Description: 512K 64K x 8 Low Voltage OTP CMOS EPROM

AT27LV512A Product details

Description

The AT27LV512A is a high performance, low power, low voltage 524,288 bit one-time programmable read only memory (OTP EPROM) organized as 64K by 8 bits.

Features

Fast Read Access Time - 90 ns Dual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6V or Standard 5V ± 10% Supply Range Compatible with JEDEC Standard AT27C512 Low Power CMOS Operation 20 µA max. (less than 1 µA typical) Standby for VCC = 3.6V 29 mW max. Active at 5 MHz for VCC = 3.6V JEDEC Standard Packages 32-Lead PLCC 28-Lead 330-mil SOIC 28-Lead TSOP High Reliability CMOS T.
