AT27LV010A - 1 Megabit 128K x 8 Low Voltage OTP CMOS EPROM

ATMEL Corporation

📥 Download Datasheet

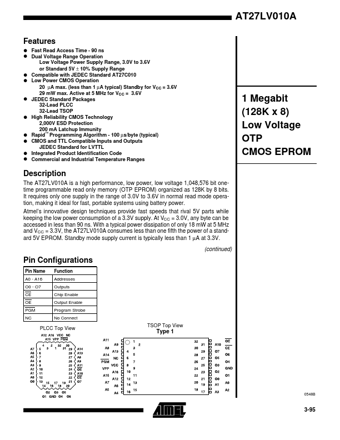

AT27LV010A Datasheet Preview — Preview of AT27LV010A PDF

Datasheet Details

Part number: AT27LV010A
Manufacturer: ATMEL Corporation
File Size: 207.14 KB
Datasheet: AT27LV010A_ATMELCorporation.pdf
Description: 1 Megabit 128K x 8 Low Voltage OTP CMOS EPROM

AT27LV010A Product details

Description

The AT27LV010A is a high performance, low power, low voltage 1,048,576 bit onetime programmable read only memory (OTP EPROM) organized as 128K by 8 bits.

Features

Fast Read Access Time - 90 ns Dual Voltage Range Operation Low Voltage Power Supply Range, 3.0V to 3.6V or Standard 5V ± 10% Supply Range Compatible with JEDEC Standard AT27C010 Low Power CMOS Operation 20 µA max. (less than 1 µA typical) Standby for VCC = 3.6V 29 mW max. Active at 5 MHz for VCC = 3.6V JEDEC Standard Packages 32-Lead PLCC 32-Lead TSOP High Reliability CMOS Technology 2,000V ESD.
