AT17N256 - FPGA Configuration Memory

Product Overview

ATMEL Corporation

Datasheet Details

Part number	AT17N256
Manufacturer	ATMEL Corporation
File Size	205.26 KB
Description	FPGA Configuration Memory
Datasheet	AT17N256 Datasheet

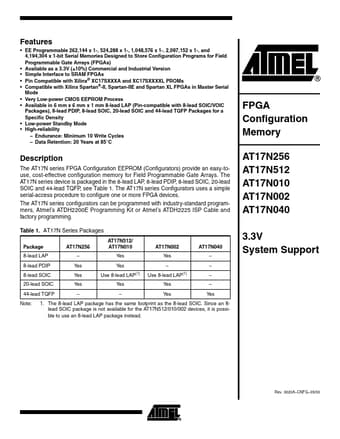

Additional preview pages of the AT17N256 datasheet.

Product details

Description

The AT17N series FPGA Configuration EEPROM (Configurators) provide an easy-touse, cost-effective configuration memory for Field Programmable Gate Arrays.

Features

EE Programmable 262,144 x 1-, 524,288 x 1-, 1,048,576 x 1-, 2,097,152 x 1-, and.
4,194,304 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs) Available as a 3.3V (±10%) Commercial and Industrial Version Simple Interface to SRAM FPGAs Pin Compatible with Xilinx® XC17SXXXA and XC17SXXXXL PROMs Compatible with Xilinx Spartan®-II, Spartan-IIE and Spartan X.
