AT1730 2-Channel PWM Controller

AT1730 Description

www.DataSheet4U.com AT1730 Preliminary Product Information 2-Channel PWM Controller for LCD Bias .
The AT1730 is a PWM DC/DC converter control IC with 2 channel outputs that can directly drive power MOSFET.

AT1730 Features

* Low input voltage: 2.4V to 6V
* 2-Channels PWM Control: Nch-MOSFET driving(CH1) Nch/Pch-MOSFET driving(CH2)
* Adjustable Soft start time and maximum duty cycle
* Built-in timer latch for short circuit protection:
* Built-in under-voltage lockout
* Hi

AT1730 Applications

* LCD Displays Bias

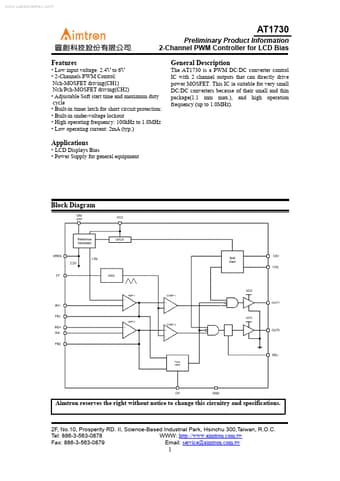

* Power Supply for general equipment Block Diagram Aimtron reserves the right without notice to change this circuitry and specifications. 2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R. O. C. Tel: 886-3-563-0878 WWW: http://www
