AT17F080A, AT17F040A - FPGA Configuration Flash Memory

ATMEL Corporation

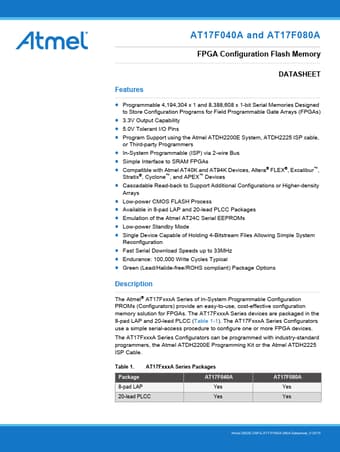

AT17F080A Datasheet Preview — This datasheet PDF includes multiple part numbers: AT17F080A, AT17F040A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AT17F080A, AT17F040A
Manufacturer	ATMEL ↗ Corporation
File Size	438.18 KB
Description	FPGA Configuration Flash Memory
Datasheet	AT17F040A_ATMELCorporation.pdf
Note	This datasheet PDF includes multiple part numbers: AT17F080A, AT17F040A. Please refer to the document for exact specifications by model.

AT17F080A Product details

Description

The Atmel® AT17FxxxA Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory solution for FPGAs.

Features

Programmable 4,194,304 x 1 and 8,388,608 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs).
3.3V Output Capability.
5.0V Tolerant I/O Pins.
Program Support using the Atmel ATDH2200E System, ATDH2225 ISP cable, or Third-party Programmers.
In-System Programmable (ISP) via 2-wire Bus.
Simple Interface to SRAM FPGAs.
Compatible with Atmel AT40K and AT94K Devices, Altera® FLEX®, Excalibur™, Stratix®, Cyclone.
