ASC600N1200MED - 1200V SiC MOSFET

Product Overview

📥 Download Datasheet

ASC600N1200MED 1200V SiC MOSFET by AST - Datasheet Preview — Datasheet preview – ASC600N1200MED

Datasheet Details

Part number	ASC600N1200MED
Manufacturer	AST
File Size	796.09 KB
Description	1200V SiC MOSFET
Datasheet	ASC600N1200MED Datasheet

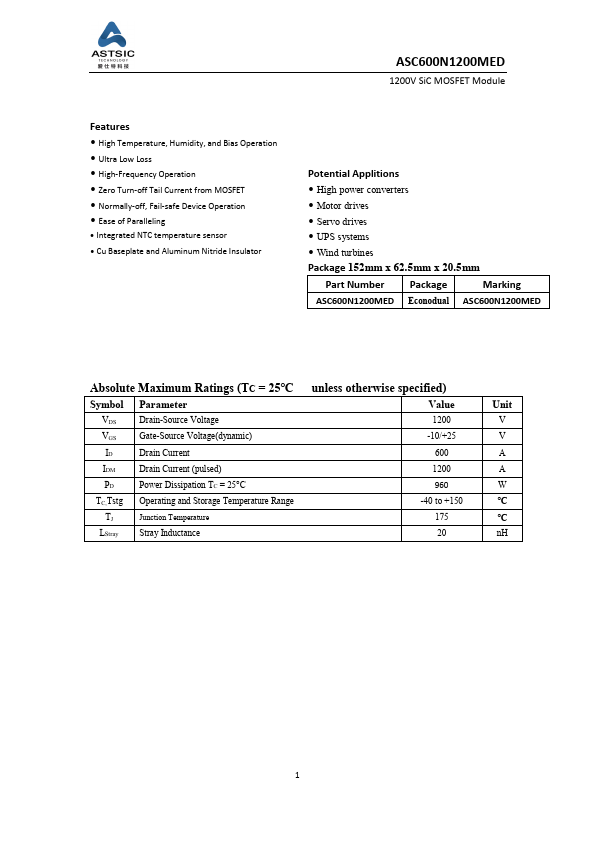

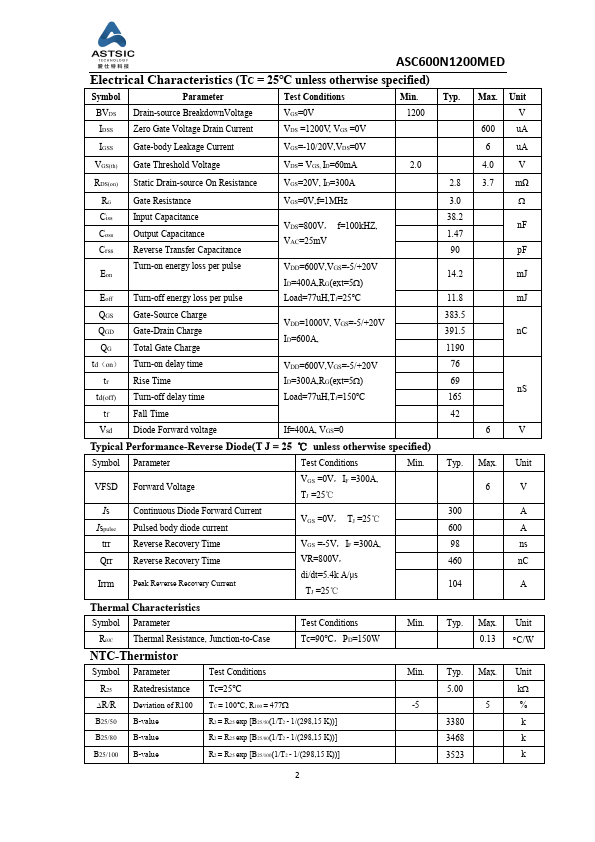

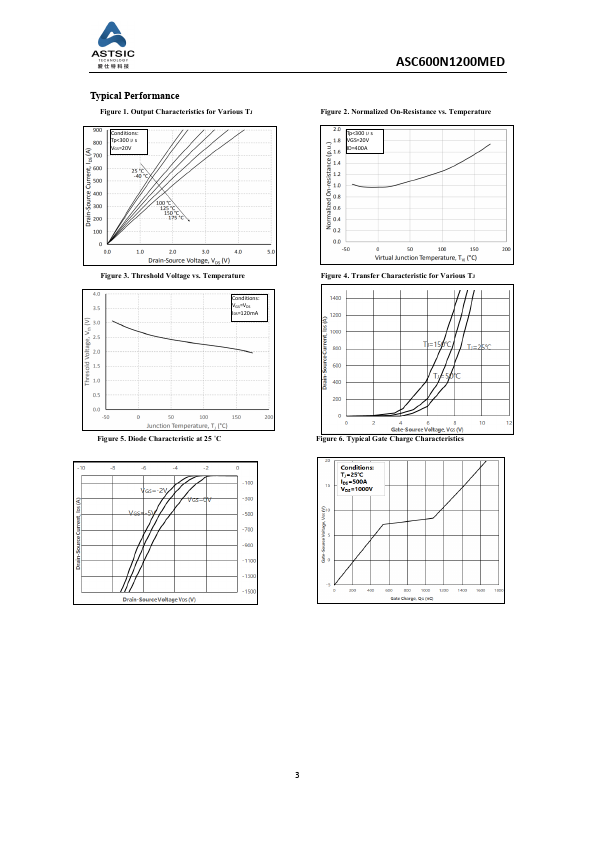

Additional preview pages of the ASC600N1200MED datasheet.

Product details

Description

Figure 10.

Features

High Temperature, Humidity, and Bias Operation.
Ultra Low Loss.
High-Frequency Operation.
Zero Turn-off Tail Current from MOSFET.
Normally-off, Fail-safe Device Operation.
Ease of Paralleling.
Integrated NTC temperature sensor.
Cu Baseplate and Aluminum Nitride Insulator Potential Applitions.
High power converters.
Motor drives.
Servo drives.
UPS systems.
Wind turbines Pac.
