SBR60A100PT Super Barrier Rectifier

APD

Description

SBR60A100PT Using state-of-the-art SBR IC process technology, the following .

📥 Download Datasheet

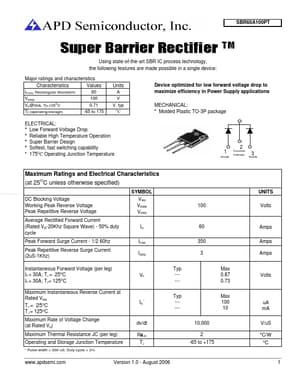

SBR60A100PT Datasheet Preview — Preview of SBR60A100PT PDF

Datasheet Specifications

Part number: SBR60A100PT
Manufacturer: APD
File Size: 94.15 KB
Datasheet: SBR60A100PT_APD.pdf
Description: Super Barrier Rectifier

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@30A, Tj=125OC Tj (operating/storage) 60 100 0.71 -65 to 175 Units A V V, typ O C Device optimized for low forward voltage drop to maximize efficiency in Power Supply a

Applications

* MECHANICAL:
* Molded Plastic TO-3P package ELECTRICAL:
* Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 175OC Operating Junction Temperature 1 Anode Common Cathode 2 Anode 3 Maximum Ratings a
