A29801B - Boot Sector Flash Memory

A29801B Description

A29801B Series Preliminary 1M X 8 Bit / 512K X 16 Bit CMOS 5.0 Volt-only, Boot Sector Flash Memory Document Title 1M X 8 Bit / 512K X 16 Bit CMOS 5.
The A29801B is an 8Mbit, 5.

A29801B Features

* Single power supply operation - Full voltage range: 4.5 to 5.5 volt for read and write operations
* Access time: - 55ns (max. )
* Current: - 20mA typical active read current - 30mA typical program/erase current - 6uA typical CMOS standby
* Flexible sector architectur

📥 Download Datasheet

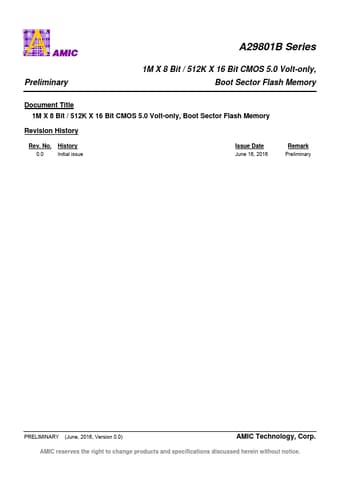

Preview of A29801B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A29801B
Manufacturer
AMIC
File Size
479.45 KB
Datasheet
A29801B-AMIC.pdf
Description
Boot Sector Flash Memory
