A29800 - Boot Sector Flash Memory

A29800 Description

A29800 Series 1024K X 8 Bit / 512K X 16 Bit CMOS 5.0 Volt-only, Preliminary .
The A29800 is a 5.

A29800 Features

* n 5.0V ± 10% for read and write operations n Access times: - 55/70/90 (max. ) n Current: - 28mA read current (word mode) - 20 mA typical active read current (byte mode) - 30 mA typical program/erase current - 1 µA typical CMOS standby n Flexible sector architecture - 16 Kbyte/ 8 KbyteX2/ 32 Kbyte/ 64

📥 Download Datasheet

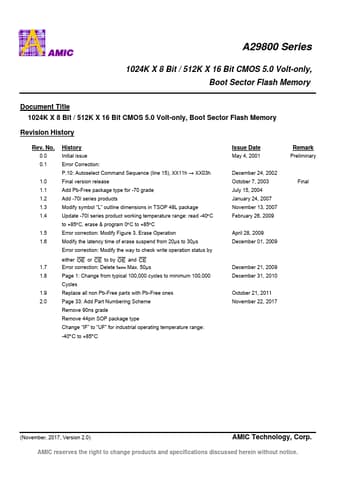

Preview of A29800 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A29800
Manufacturer
AMIC Technology
File Size
510.21 KB
Datasheet
A29800_AMICTechnology.pdf
Description
Boot Sector Flash Memory
