25L020 - A25L020

Description

in Part Numbering Scheme P30: Change Data Retention and Endurance value from Max.

to Min.

1.6 1.

Features

  • Family of Serial Flash Memories - A25L020: 2M-bit /256K-byte - A25L010: 1M-bit /128K-byte - A25L512: 512K-bit /64K-byte.
  • Flexible Sector Architecture with 4KB sectors - Sector Erase (4K-bytes) in 0.2s (typical) - Block Erase (64K-bytes) in 0.5s (typical).
  • Page Program (up to 256 Bytes) in 2ms (typical).
  • 2.7 to 3.6V Single Supply Voltage.
  • SPI Bus Compatible Serial Interface.
  • 100MHz Clock Rate (maximum).
  • Deep Power-down Mode 15µA (Max.

📥 Download Datasheet

Datasheet Details

Part number 25L020
Manufacturer AMIC
File Size 697.83 KB
Description A25L020
Datasheet download datasheet 25L020 Datasheet

📁 Similar Datasheet

  • 25L1005 - 1M-BIT [x 1] CMOS SERIAL FLASH (Macronix International)
  • 25L1005MC - MX25L1005MC (Macronix International)
  • 25L12835F - MX25L12835F (Macronix)
  • 25L1605A - MX25L1605A (Macronix International)
  • 25L1605D - MX25L1605D (Macronix International)
  • 25L1606E - CMOS SERIAL FLASH MEMORY (MXIC)
  • 25L2026C - MX25L2026C (Macronix International)
  • 25L3205 - MX25L3205 (Macronix International)
  • 25L3205D - MX25L3205D (Macronix International)
  • 25L3206E - 32M-BIT CMOS SERIAL FLASH (Macronix)
Other Datasheets by AMIC

    Full PDF Text Transcription

    Click to expand full text

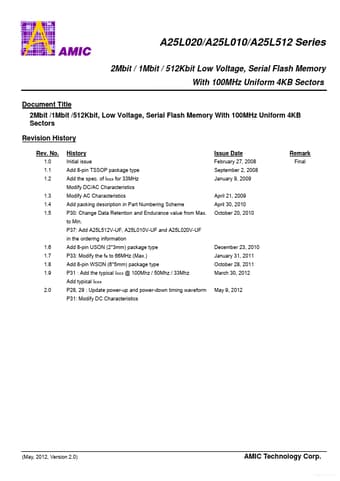

    A25L020/A25L010/A25L512 Series 2Mbit / 1Mbit / 512Kbit Low Voltage, Serial Flash Memory With 100MHz Uniform 4KB Sectors Document Title 2Mbit /1Mbit /512Kbit, Low Voltage, Serial Flash Memory With 100MHz Uniform 4KB Sectors Revision History Rev. No. 1.0 1.1 1.2 1.3 1.4 1.5 History Initial issue Add 8-pin TSSOP package type Add the spec. of ICC3 for 33MHz Modify DC/AC Characteristics Modify AC Characteristics Add packing description in Part Numbering Scheme P30: Change Data Retention and Endurance value from Max. to Min. P37: Add A25L512V-UF, A25L010V-UF and A25L020V-UF in the ordering information Issue Date February 27, 2008 September 2, 2008 January 9, 2009 April 21, 2009 April 30, 2010 October 20, 2010 Remark Final 1.6 1.7 1.8 1.9 2.
