MD7101_A01 - 2.4GHz FSK Receiver

Name: MD7101_A01
SKU: MD7101_A01-676997

AMIC Technology

The MD7101_A01 by AMIC Technology is a 2.4GHz FSK Receiver. Below is the official datasheet preview.

Datasheet Details

Part number	MD7101_A01
Manufacturer	AMIC Technology
File Size	266.21 KB
Description	2.4GHz FSK Receiver
Datasheet	MD7101_A01_AMICTechnology.pdf

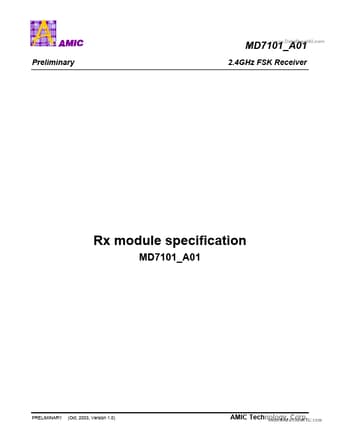

Additional preview pages of the MD7101_A01 datasheet.

The receiver module is designed for 2.4GHz ISM band wireless applications using AMIC A7101 FSK transceiver.

a fully programmable frequency synthesizer, which is base on 100KHz reference frequency and 300uA charge pump output current. The data rate is 57.6Kbps or 64Kbps. Electrical specification Item Supply voltage Current consumption Frequency Rx sensitivity Modulation Channel spacing Channel number Interface Dimension Operating temperature Specification 3 - 5V 6uA(typical) @sleep mode (regulator off) 10mA(typical) @sleep mode (regulator on) 12mA(typical) @stand-by mode 40mA(typical) @Rx mode 2416.
