A82DL3224U, A82DL3224T (A82DL32x4U) Stacked Multi-Chip Package (MCP) Flash Memory and SRAM

AMIC Technology

Description

A82DL32x4T(U) Series Stacked Multi-Chip Package (MCP) Flash Memory and SRAM, A82DL32x4T(U) 32 Megabit (4Mx8 Bit/2Mx16 Bit) CMOS 3.3 Volt-only, Simulta.
The A82DL32x4T(U) family consists of 32 megabit, 3.

📥 Download Datasheet

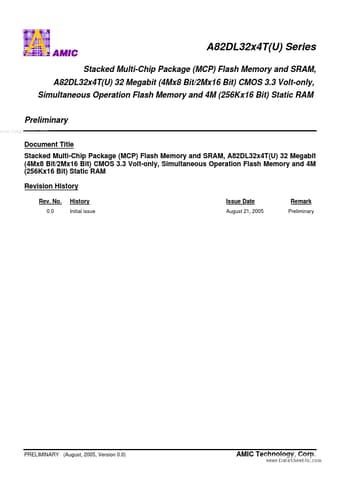

A82DL3224U Datasheet Preview — This datasheet PDF includes multiple part numbers: A82DL3224U, A82DL3224T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: A82DL3224U, A82DL3224T
Manufacturer: AMIC Technology
File Size: 0.99 MB
Datasheet: A82DL3224T_AMICTechnology.pdf
Description: (A82DL32x4U) Stacked Multi-Chip Package (MCP) Flash Memory and SRAM
Note: This datasheet PDF includes multiple part numbers: A82DL3224U, A82DL3224T.
Please refer to the document for exact specifications by model.

Features

* Single power supply operation 2.7 to 3.6 volt High Performance - Access time as fast as 70ns Package 69-Ball TFBGA (8x11x1.4 mm) Industrial operating temperature range: -40°C to 85°C for
* U; -25°C to 85°C for
* I - Suspends erase operations to allow programming in same bank Data Polli

Applications

* Three devices are available with these bank sizes: Device DL3224 DL3234 DL3244 Bank 1 4 Mb 8 Mb 16 Mb Bank 2 28 Mb 24 Mb 16 Mb PRELIMINARY (August, 2005, Version 0.0) 2 AMIC Technology, Corp. A82DL32x4T(U) Series Pin Configurations 69-Ball TFBGA Top View Flash only A1 A5 A6 A10 NC B1 B3 B4
