A82DL3224T, (A82DL32x4T) Stacked Multi-Chip Package (MCP) Flash Memory and SRAM

The A82DL32x4T(U) family consists of 32 megabit, 3.0 voltonly flash memory devices, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each.

Word mode data appears on I/O0 *I/O15; byte mode data appears on I/O0 * I/O7.

The device is designed to be programmed in-s

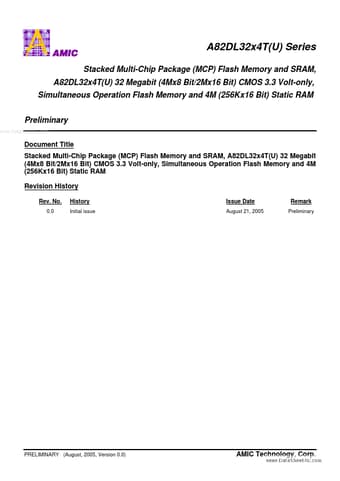

A82DL32x4T(U) Series Stacked Multi-Chip Package (MCP) Flash Memory and SRAM, A82DL32x4T(U) 32 Megabit (4Mx8 Bit/2Mx16 Bit) CMOS 3.3 Volt-only, Simultaneous Operation Flash Memory and 4M (256Kx16 Bit) Static RAM Preliminary www.DataSheet4U.com Document Title Stacked Multi-Chip Package (MCP) Flash Memory and SRAM, A82DL32x4T(U) 32 Megabit (4Mx8 Bit/2Mx16 Bit) CMOS 3.3 Volt-only, Simultaneous Operation Flash Memory and 4M (256Kx16 Bit) Static RAM Revision History Rev.

No.

0.0 History Initial issu

A82DL3224T Features

* Single power supply operation 2.7 to 3.6 volt High Performance - Access time as fast as 70ns Package 69-Ball TFBGA (8x11x1.4 mm) Industrial operating temperature range: -40°C to 85°C for

* U; -25°C to 85°C for

* I - Suspends erase operations to allow programming in same bank Data Polli
