AA32, AA31 Datasheet - AMI

AA32 CMOS Gate Array

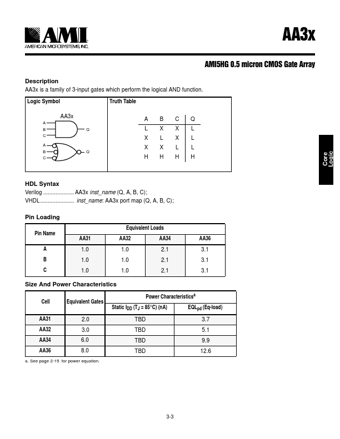

AA3x is a family of 3-input gates which perform the logical AND function. Logic Symbol Truth Table AA3x A BQ C A BQ C A B CQ L XX L XLXL XXL L HHHH HDL Syntax Verilog AA3x inst_name (Q, A, B, C); VHDL inst_name: AA3x port map (Q, A, B, C); Pin Loading Pin Name A B C AA31 1.0 1.0 1.0 Equival.

AA31-AMI.pdf

AA32 Datasheet Preview — This datasheet PDF includes multiple part numbers: AA32, AA31. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AA32, AA31

Manufacturer:

AMI

File Size:

25.68 KB

Description:

Cmos gate array.

Note:

This datasheet PDF includes multiple part numbers: AA32, AA31.
Please refer to the document for exact specifications by model.
