AA34 - CMOS Gate Array

Download the AA34 datasheet PDF. This datasheet also covers the AA31 variant, as both devices belong to the same cmos gate array family and are provided as variant models within a single manufacturer datasheet.

General Description

AA3x is a family of 3-input gates which perform the logical AND function.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AA31-AMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AA34
Manufacturer AMI
File Size 25.68 KB
Description CMOS Gate Array
Datasheet download datasheet AA34 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AA3414 SINGLE-SUPPLY DUAL HIGH CURRENT OPERATIONAL AMPLIFIER Agamem Microelectronic
AA3020CGCK SMD LED Kingbright Corporation
AA3020EC SMD LED Kingbright
AA3020IT SMD LED ETC
AA3020SGC SMD LED Kingbright

Other Datasheets by AMI

Part Number Description
AA31 CMOS Gate Array
AA32 CMOS Gate Array
AA36 CMOS Gate Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

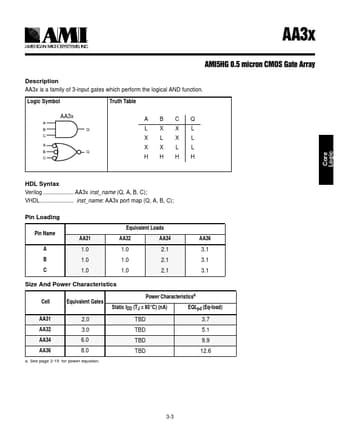

Core Logic $$[ ® $0,+*  PLFURQ &026 *DWH $UUD Description AA3x is a family of 3-input gates which perform the logical AND function. Logic Symbol Truth Table AA3x A BQ C A BQ C A B CQ L XX L XLXL XXL L HHHH HDL Syntax Verilog .................... AA3x inst_name (Q, A, B, C); VHDL...................... inst_name: AA3x port map (Q, A, B, C); Pin Loading Pin Name A B C AA31 1.0 1.0 1.0 Equivalent Loads AA32 AA34 1.0 2.1 1.0 2.1 1.0 2.1 AA36 3.1 3.1 3.1 Size And Power Characteristics Cell AA31 Equivalent Gates 2.0 Power Characteristicsa Static IDD (TJ = 85°C) (nA) EQLpd (Eq-load) TBD 3.7 AA32 AA34 AA36 3.0 6.0 8.0 TBD TBD TBD 5.1 9.9 12.6 a. See page 2-15 for power equation.
