S2042 (S2042 / S2043) HIGH PERFORMANCE SERIAL INTERFACE CIRCUITS

S2042 Description

www.DataSheet4U.com PRELIMINARY DEVICE SPECIFICATION ® HIGH PERFORMANCE SERIAL INTERFACE CIRCUITS BiCMOS PECL CLOCK SERIAL GENERATOR HIGH PERFORMANC.
S2042/S2043 S2042/S2043 FEATURES. Functionally compliant with ANSI X3T11 Fibre Channel physical and transmission protocol standards.

S2042 Features

* Functionally compliant with ANSI X3T11 Fibre Channel physical and transmission protocol standards
* S2042 transmitter incorporates phase-locked loop (PLL) providing clock synthesis from low-speed reference
* S2043 receiver PLL configured for clock and data recovery

S2042 Applications

* High-speed data communications
* Supercomputer/Mainframe
* Workstation
* Switched networks
* Proprietary extended backplanes

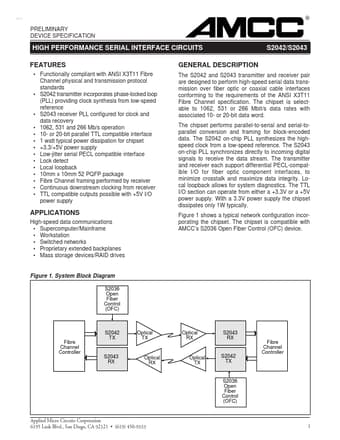

* Mass storage devices/RAID drives Figure 1. System Block Diagram S2036 Open Fiber Control (OFC) Fibre Channel Controller S2042 TX
