AP1152 - Low Noise LDO Regulator

AP1152 Description

[AP1152] AP1152 300mA Output,High PSRR,Low Noise LDO Regulator 1.General .
The AP1152 is a low dropout linear regulator with On/Off control, which can supply 200mA load current.

AP1152 Features

* Operating Temperature Range
* Operating Voltage Range -40 to 85℃ 2.1 to 14.5V
* Output Current 300mA
* Settable range of output voltage 1.3 to 9.5V
* Output Voltage Precision ±1.5% or ±50mV
* Dropout Voltage
* Ripple Rejection 105mV at IOUT=100mA 80dB at 1kHz

📥 Download Datasheet

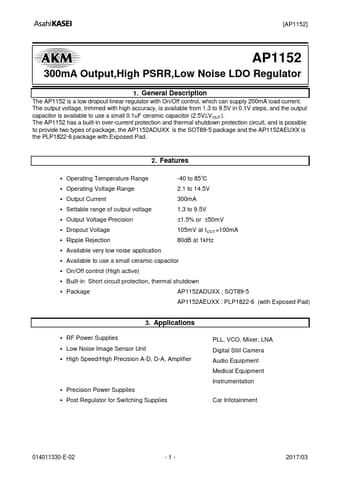

Preview of AP1152 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1152
Manufacturer
AKM
File Size
916.69 KB
Datasheet
AP1152-AKM.pdf
Description
Low Noise LDO Regulator
