AK1573B, AK1573 - Frequency Synthesizer

AK1573B Description

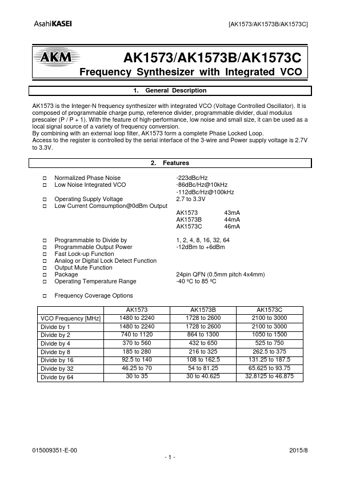

[AK1573/AK1573B/AK1573C] AK1573/AK1573B/AK1573C Frequency Synthesizer with Integrated VCO 1.General .
AK1573 is the Integer-N frequency synthesizer with integrated VCO (Voltage Controlled Oscillator).

AK1573B Features

*  Normalized Phase Noise -223dBc/Hz  Low Noise Integrated VCO -86dBc/Hz@10kHz -112dBc/Hz@100kHz  Operating Supply Voltage 2.7 to 3.3V  Low Current Comsumption@0dBm Output AK1573 43mA AK1573B 44mA AK1573C 46mA  Programmable to Divide by  Programmable Output Power  Fast Lock-up Fu

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AK1573B, AK1573. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK1573B, AK1573
Manufacturer
AKM
File Size
1.49 MB
Datasheet
AK1573-AKM.pdf
Description
Frequency Synthesizer
Note
This datasheet PDF includes multiple part numbers: AK1573B, AK1573.
Please refer to the document for exact specifications by model.
