AK1572 - Down Converter Mixer

AK1572 Description

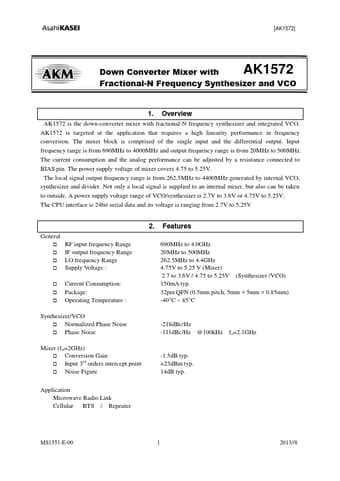

[AK1572] Down Converter Mixer with Fractional-N Frequency Synthesizer and VCO AK1572 1.Overview AK1572 is the down-converter mixer with fraction.
and Assignment ________________________________ 4 Absolute Maximum Rating _____________________________________________ 6 Recommended Operating Range.

AK1572 Features

* 690MHz to 4.0GHz 20MHz to 500MHz 262.5MHz to 4.4GHz 4.75V to 5.25 V (Mixer) 2.7 to 3.6V / 4.75 to 5.25V (Synthesizer /VCO) 150mA typ. 32pin QFN (0.5mm pitch, 5mm  5mm  0.85mm) -40°C ~ 85°C RF input frequency Range IF output frequency Range LO frequency Range Supply Voltage : Current Consumption:

📥 Download Datasheet

Preview of AK1572 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AK1572
Manufacturer
AKM
File Size
822.82 KB
Datasheet
AK1572-AKM.pdf
Description
Down Converter Mixer
