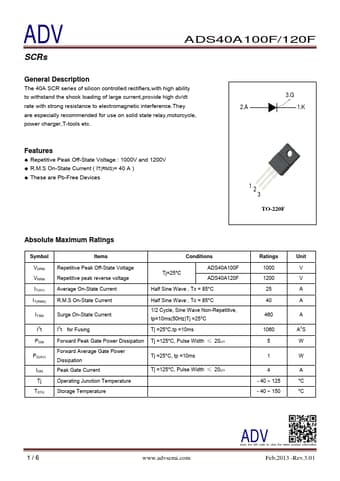

Description
The 40A SCR series of silicon controlled rectifiers,with high ability to withstand the shock loading of large current,provide high dv/dt rate with strong resistance to electromagnetic interference.They are especially recommended for use on solid state relay,motorcycle, power charger,T-tools etc.
Features
- Repetitive Peak Off-State Voltage : 1000V and 1200V.
- R. M. S On-State Current ( IT(RMS)= 40 A ).
- These are Pb-Free Devices
1 23 TO-220F
Absolute Maximum Ratings
Symbol VDRM VRRM IT(AV) IT(RMS)
ITSM
I2t PGM
PG(AV)
IGM Tj TSTG
Items Repetitive Peak Off-State Voltage Repetitive peak reverse voltage
Conditions
Tj=25°C
ADS40A100F ADS40A120F
Average On-State Current
Half Sine Wave , Tc = 85°C
R. M. S On-State Current Surge On-State Current I2t for Fusing
Half Sine Wave , Tc = 85.
