ADS4126, ADS4149 - Ultralow-Power ADC

Texas Instruments

📥 Download Datasheet

ADS4126 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS4126, ADS4149. Please refer to the document for exact specifications by model.

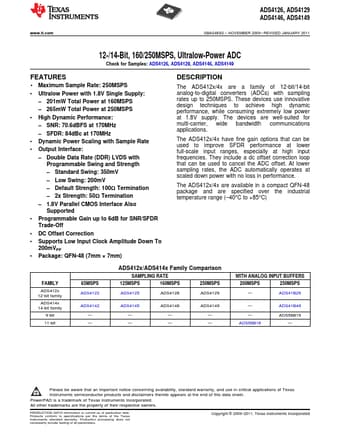

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ADS4126, ADS4149
Manufacturer	Texas Instruments
File Size	3.27 MB
Description	Ultralow-Power ADC
Datasheet	ADS4149-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: ADS4126, ADS4149. Please refer to the document for exact specifications by model.

ADS4126 Product details

Description

The ADS412x/4x are a family of 12-bit/14-bit analog-to-digital converters (ADCs) with sampling rates up to 250MSPS.

Features

1.
23 Maximum Sample Rate: 250MSPS.
Ultralow Power with 1.8V Single Supply:.
201mW Total Power at 160MSPS.
265mW Total Power at 250MSPS.
High Dynamic Performance:.
SNR: 70.6dBFS at 170MHz.
SFDR: 84dBc at 170MHz.
Dynamic Power Scaling with Sample Rate.
Output Interface:.
Double Data Rate (DDR) LVDS with Programmable Swing and Strength.
Standard Swing: 350mV.
Low Swing: 200mV.
Defaul.
