A942150b00, A941100b00 PV Fuse

Description

PV CYLINDRICAL FUSE LINKS A94 gPV 1500 Vdc Fuse 22x58 mm .

📥 Download Datasheet

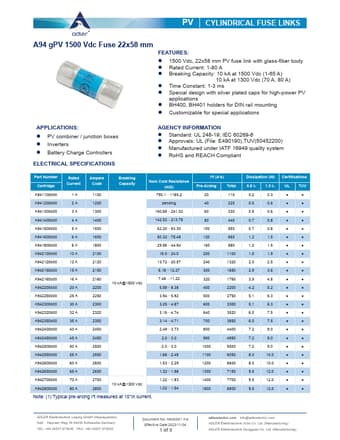

A942150b00 Datasheet Preview — This datasheet PDF includes multiple part numbers: A942150b00, A941100b00. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: A942150b00, A941100b00
Manufacturer: ADLER
File Size: 432.53 KB
Datasheet: A941100b00-ADLER.pdf
Description: PV Fuse
Note: This datasheet PDF includes multiple part numbers: A942150b00, A941100b00.
Please refer to the document for exact specifications by model.

Features

* 1500 Vdc, 22x58 mm PV fuse link with glass-fiber body
* Rated Current: 1-80 A
* Breaking Capacity: 10 kA at 1500 Vdc (1-65 A) 10 kA at 1300 Vdc (70 A, 80 A)
* Time Constant: 1-3 ms

Applications

* BH400, BH401 holders for DIN rail mounting
* Customizable for special applications APPLICATIONS:
* PV combiner / junction boxes
* Inverters
* Battery Charge Controllers ELECTRICAL SPECIFICATIONS AGENCY INFORMATION
* Standard: UL 248-19; IEC 60269-6
* Approvals: UL (Fi
