A942100b00 - PV Fuse

Download the A942100b00 datasheet PDF. This datasheet also covers the A941100b00 variant, as both devices belong to the same pv fuse family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1500 Vdc, 22x58 mm PV fuse link with glass-fiber body.
  • Rated Current: 1-80 A.
  • Breaking Capacity: 10 kA at 1500 Vdc (1-65 A) 10 kA at 1300 Vdc (70 A, 80 A).
  • Time Constant: 1-3 ms.
  • Special design with silver plated caps for high-power PV.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (A941100b00-ADLER.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number A942100b00
Manufacturer ADLER
File Size 432.53 KB
Description PV Fuse
Datasheet download datasheet A942100b00 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A942 PNP Transistor ETC
A94 High Voltage Transistor GME
A94 TRANSISTOR Jiangsu Changjiang Electronics
A94-10 Level Sensors Conductive ETC
A94-20 Level Sensors Conductive ETC

Other Datasheets by ADLER

Part Number Description
A942120b00 PV Fuse
A942150b00 PV Fuse
A942160b00 PV Fuse
A942200b00 PV Fuse
A942250b00 PV Fuse

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

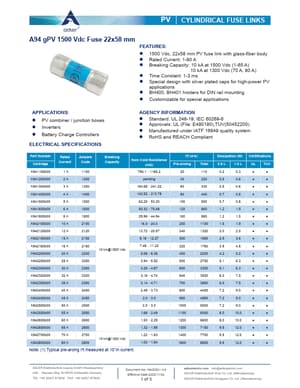

PV CYLINDRICAL FUSE LINKS A94 gPV 1500 Vdc Fuse 22x58 mm FEATURES:  1500 Vdc, 22x58 mm PV fuse link with glass-fiber body  Rated Current: 1-80 A  Breaking Capacity: 10 kA at 1500 Vdc (1-65 A) 10 kA at 1300 Vdc (70 A, 80 A)  Time Constant: 1-3 ms  Special design with silver plated caps for high-power PV applications  BH400, BH401 holders for DIN rail mounting  Customizable for special applications APPLICATIONS:  PV combiner / junction boxes  Inverters  Battery Charge Controllers ELECTRICAL SPECIFICATIONS AGENCY INFORMATION  Standard: UL 248-19; IEC 60269-6  Approvals: UL (File: E490190),TUV(50452200)  Manufactured under IATF 16949 quality system  RoHS and REACH Compliant Part Number Cartridge A941100b00 Rated Current 1A Ampere Code 1100 Breaking Capacity Nom Cold Resi
