ACE432 - Precision adjustable shunt voltage reference

ACE Technology

📥 Download Datasheet

ACE432 Datasheet Preview — Preview of ACE432 PDF

Datasheet Details

Part number	ACE432
Manufacturer	ACE Technology
File Size	272.13 KB
Description	Precision adjustable shunt voltage reference
Datasheet	ACE432_ACETechnology.pdf

ACE432 Product details

Description

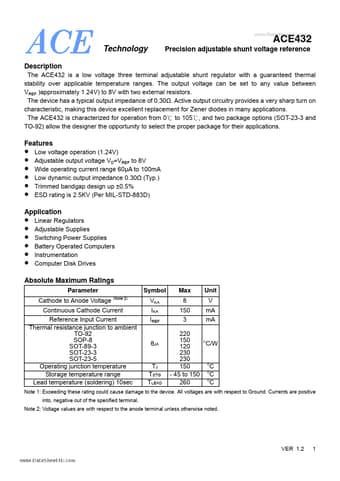

Precision adjustable shunt voltage reference The ACE432 is a low voltage three terminal adjustable shunt regulator with a guaranteed thermal stability over applicable temperature ranges.The output voltage can be set to any value between VREF )approximately 1.24V) to 8V with two external resistors.The device has a typical output impedance of 0.30Ω.Active output circuitry provides a very sharp turn on characteristic, making this device excellent replacement for Zener diodes in many applicatio

Features

Low voltage operation (1.24V) Adjustable output voltage VD=VREF to 8V Wide operating current range 60μA to 100mA Low dynamic output impedance 0.30Ω (Typ. ) Trimmed bandgap design up ±0.5% ESD rating is 2.5KV (Per MIL-STD-883D).
