ACE431S - Adjustable Precision Shunt Regulator

ACE Technology

📥 Download Datasheet

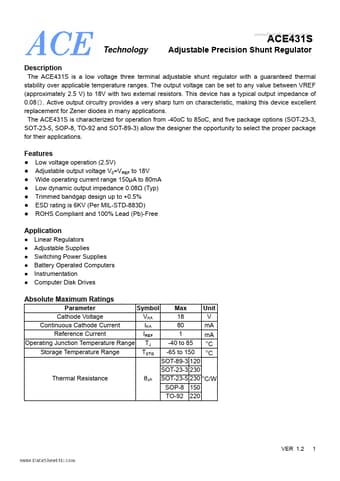

ACE431S Datasheet Preview — Preview of ACE431S PDF

Datasheet Details

Part number	ACE431S
Manufacturer	ACE Technology
File Size	326.61 KB
Description	Adjustable Precision Shunt Regulator
Datasheet	ACE431S_ACETechnology.pdf

ACE431S Product details

Description

Adjustable Precision Shunt Regulator The ACE431S is a low voltage three terminal adjustable shunt regulator with a guaranteed thermal stability over applicable temperature ranges.The output voltage can be set to any value between VREF (approximately 2.5 V) to 18V with two external resistors.This device has a typical output impedance of 0.08Ω.Active output circuitry provides a very sharp turn on characteristic, making this device excellent replacement for Zener diodes in many applications.T

Features

Low voltage operation (2.5V).
Adjustable output voltage V0=VREF to 18V.
Wide operating current range 150μA to 80mA.
Low dynamic output impedance 0.08Ω (Typ).
Trimmed bandgap design up to +0.5%.
ESD rating is 6KV (Per MIL-STD-883D).
ROHS Compliant and 100% Lead (Pb)-Free.
