ACE302 - Low Voltage Detector

ACE Technology

📥 Download Datasheet

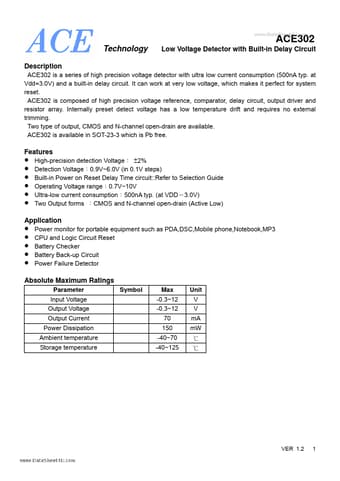

ACE302 Datasheet Preview — Preview of ACE302 PDF

Datasheet Details

Part number	ACE302
Manufacturer	ACE Technology
File Size	0.96 MB
Description	Low Voltage Detector
Datasheet	ACE302_ACETechnology.pdf

ACE302 Product details

Description

Low Voltage Detector with Built-in Delay Circuit ACE302 is a series of high precision voltage detector with ultra low current consumption (500nA typ.at Vdd=3.0V) and a built-in delay circuit.It can work at very low voltage, which makes it perfect for system reset.ACE302 is composed of high precision voltage reference, comparator, delay circuit, output driver and resistor array.Internally preset detect voltage has a low temperature drift and requires no external trimming.Two type of output

Features

High-precision detection Voltage： ±2% Detection Voltage：0.9V~6.0V (in 0.1V steps) Built-in Power on Reset Delay Time circuit::Refer to Selection Guide Operating Voltage range：0.7V~10V Ultra-low current consumption：500nA typ. (at VDD＝3.0V) Two Output forms ：CMOS and N-channel open-drain (Active Low).
