S-8249 - Voltage monitoring

ABLIC

📥 Download Datasheet

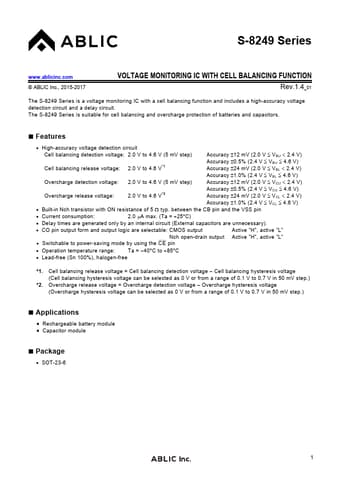

S-8249 Datasheet Preview — Preview of S-8249 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-8249
Manufacturer	ABLIC
File Size	541.55 KB
Description	Voltage monitoring
Datasheet	S-8249-ABLIC.pdf

S-8249 Product details

Features

High-accuracy voltage detection circuit Cell balancing detection voltage: 2.0 V to 4.6 V (5 mV step) Accuracy 12 mV (2.0 V VBU  2.4 V) Cell balancing release voltage: 2.0 V to 4.6 V.
1 Accuracy 0.5% (2.4 V VBU 4.6 V) Accuracy 24 mV (2.0 V VBL  2.4 V) Accuracy 1.0% (2.4 V VBL 4.6 V) Overcharge detection voltage: 2.0 V to 4.6 V (5 mV step) Accuracy 12 mV (2.0 V VCU  2.4 V) Overcharge release voltage: 2.0 V to 4.6 V.
2 Accuracy 0.5% (2.4 V VCU 4.6.
