S-8244 Battery Protection

S-8244 Description

S-8244 Series www.ablic.com © ABLIC Inc., 2003-2020 BATTERY PROTECTION IC FOR 1-SERIAL TO 4-SERIAL-CELL PACK (SECONDARY PROTECTION) Rev.7.1_00 The .

S-8244 Features

* (1) Internal high-precision voltage detector circuit
* Overcharge detection voltage range: 3.700 V to 4.550 V: Accuracy of ± 25 mV (at +25°C) (at a 5 mV/step) Accuracy of ± 50 mV (at
* 40°C to +85°C)
* Hysteresis: 5 types 0.38 ± 0.1 V, 0.25 ± 0.07 V, 0.13 ± 0.04 V, 0.045

S-8244 Applications

* Lithium ion rechargeable battery packs (secondary protection)
* Packages
* SNT-8A
* TMSOP-8 1 BATTERY PROTECTION IC FOR 1-SERIAL TO 4-SERIAL-CELL PACK (SECONDARY PROTECTION) S-8244 Series Rev.7.1_00
* Block Diagram VCC SENSE VC1 VC2 VC3 VSS Overcharge detect

📥 Download Datasheet

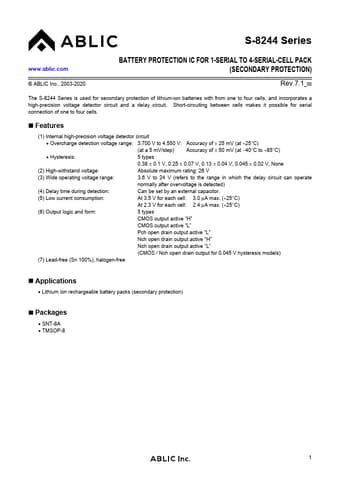

Preview of S-8244 PDF
